Executive Summary
For engineers designing precision micro-motors, automotive sensors, VCM modules, drone actuators, and high-end consumer electronics, selecting between injection molded and bonded NdFeB magnets is a critical materials decision. Injection Molded vs. Bonded NdFeB Magnets: Selecting the Right Solution for Complex Geometric Micro-Motors directly impacts dimensional fidelity, magnetic consistency, thermal robustness, and assembly efficiency. Nibboh’s dual-process capability—backed by ±0.01mm tolerance control, multi-pole magnetization, and ISO 9001:2015–certified manufacturing—enables optimal selection without compromise.
Technical Challenge
Modern micro-motor architectures demand magnets that integrate seamlessly into tight envelopes—thin-walled rings, over-molded rotor assemblies, and near-net shapes with intricate features. Traditional sintered magnets require costly secondary machining and lack design flexibility; meanwhile, geometric complexity amplifies sensitivity to dimensional drift, magnetic field non-uniformity, and thermal demagnetization risk. In precision micro-motors and automotive sensors, even micron-level deviations in wall thickness or pole alignment can induce cogging torque, reduce efficiency, or impair signal integrity in Hall-effect sensing.
Nibboh Solution
Nibboh resolves this through purpose-built manufacturing duality: specialized compression molding for bonded NdFeB (higher magnetic powder loading, superior MGOe) and precision injection molding (polymer matrix compatibility with PA6, PA12, PPS) for complex geometries unattainable via compression alone. Our 10,000 sqm Tianjin facility delivers 500 tons annually of combined bonded and injection magnets—each part held to ±0.01mm dimensional strictness. Multi-pole magnetization (radial, axial, Halbach array) is applied post-molding under ISO 9001:2015 process controls, ensuring field uniformity essential for VCM stability and drone actuator responsiveness. Dual Support: US Engineering + China Manufacturing enables zero-timezone technical validation—accelerating prototyping, grade selection, and production ramp.
Product Spotlight

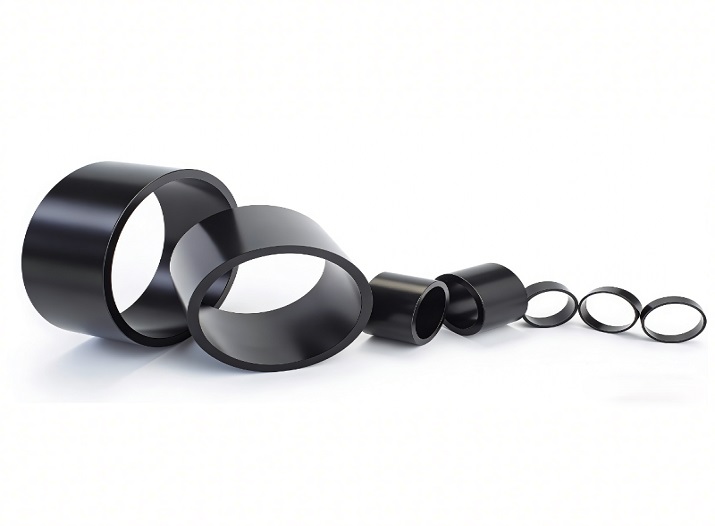

The Nibboh Bonded NdFeB Magnets & Custom Injection Molded Magnets are engineered specifically for precision sensors, VCM modules, and complex geometric micro-motors. They combine geometric versatility—thin-walled rings, over-molded assemblies, and near-net shapes—with flexible multi-pole magnetization and strict ±0.01mm tolerance control. Manufactured in our ISO 9001:2015–certified facility, these magnets support rapid iteration from concept to volume production without sacrificing magnetic performance or mechanical integrity.
Industry Trends
Increasing adoption of miniaturized, high-efficiency motion systems is driving demand for magnets that merge magnetic strength with design freedom. Robotics, eVTOL propulsion modules, and next-generation ADAS sensors rely on compact, thermally stable, and geometrically adaptive magnetic solutions. As system integration intensifies—especially in over-molded and shaft-integrated motor topologies—the ability to co-design magnetics with mechanical and electromagnetic requirements becomes indispensable.
FAQ
- Q: What is the primary architectural difference between injection molded and bonded NdFeB magnets?
A: Injection molded magnets use magnetic powders blended with polymer matrices (like PA6, PA12, or PPS), allowing them to be molded directly onto shafts or into highly complex shapes with ultra-tight tolerances without secondary machining. Bonded NdFeB magnets, produced via compression molding with thermoset resins, offer a higher magnetic powder loading, resulting in higher magnetic energy output (MGOe) but with slightly simpler geometric profiles compared to injection molding. - Q: Can Nibboh supply multi-pole magnetized rings for high-precision micro-motors?
A: Yes. Leveraging our ISO 9001:2015 strict process controls and advanced magnetization fixtures, Nibboh customizes complex multi-pole radial magnetization for both bonded and injection-molded rings. This ensures uniform magnetic field distribution, critical for eliminating cogging torque and maximizing motor efficiency.
