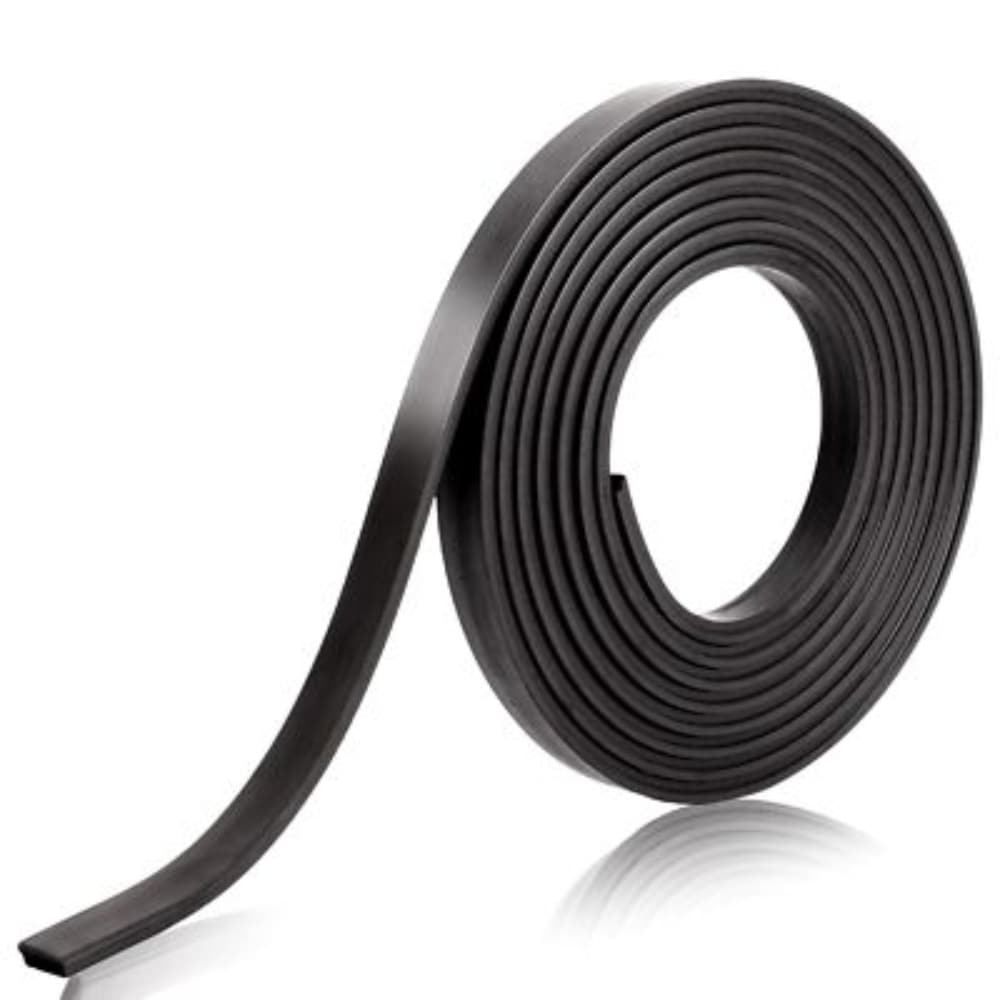

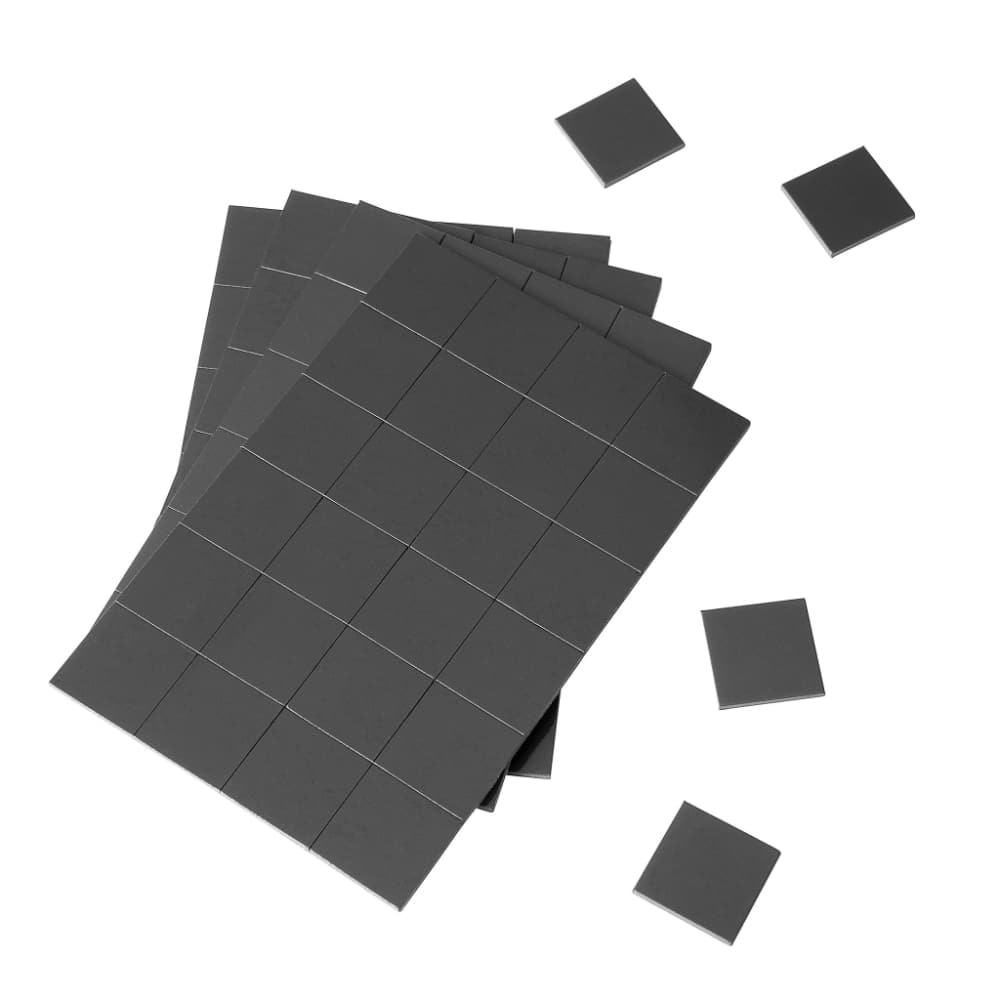

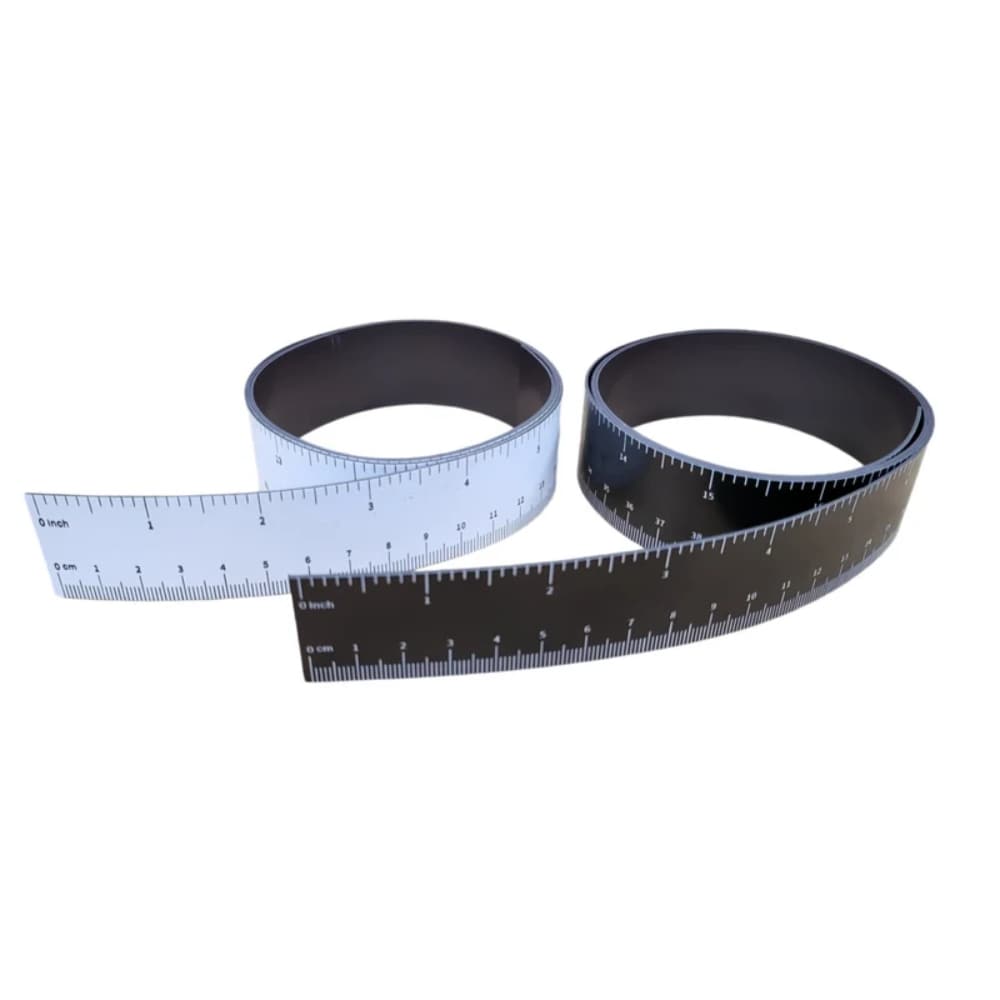

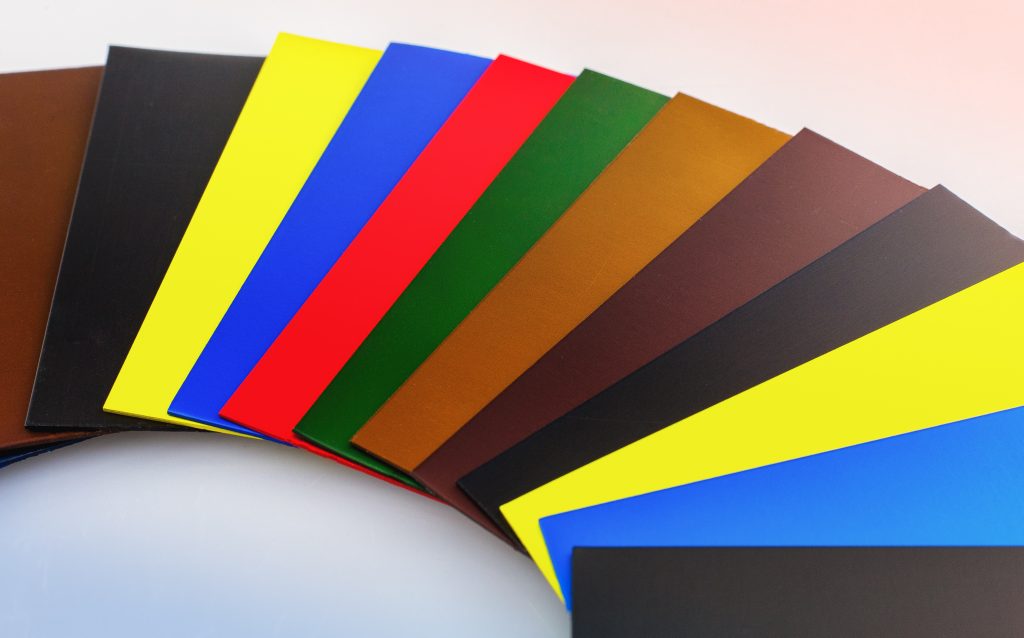

Rubber magnets are flexible magnetic materials made by combining ferrite magnetic powders with synthetic rubber through extrusion, calendering, injection molding, or similar processes. They can be bent or cut at will, feature moderate magnetic strength, are lightweight, and easy to process. They can be made into rolls, sheets, or custom shapes, with optional surface coatings or films. Rubber magnets are widely used in fridge magnets, stationery and educational tools, advertising signs, door and window sealing strips, and small motor components.
For a quotation, please share the required shape, width, thickness and length, grade if specified, surface film or coating requirements, adhesive needs, operating conditions, and order quantity. Confirm the final grade and application suitability for your design before ordering.

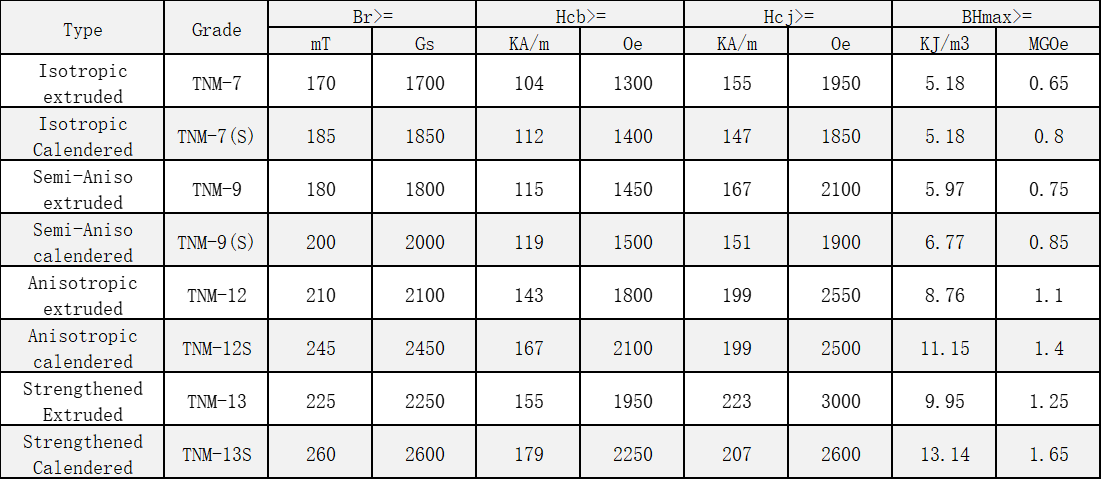

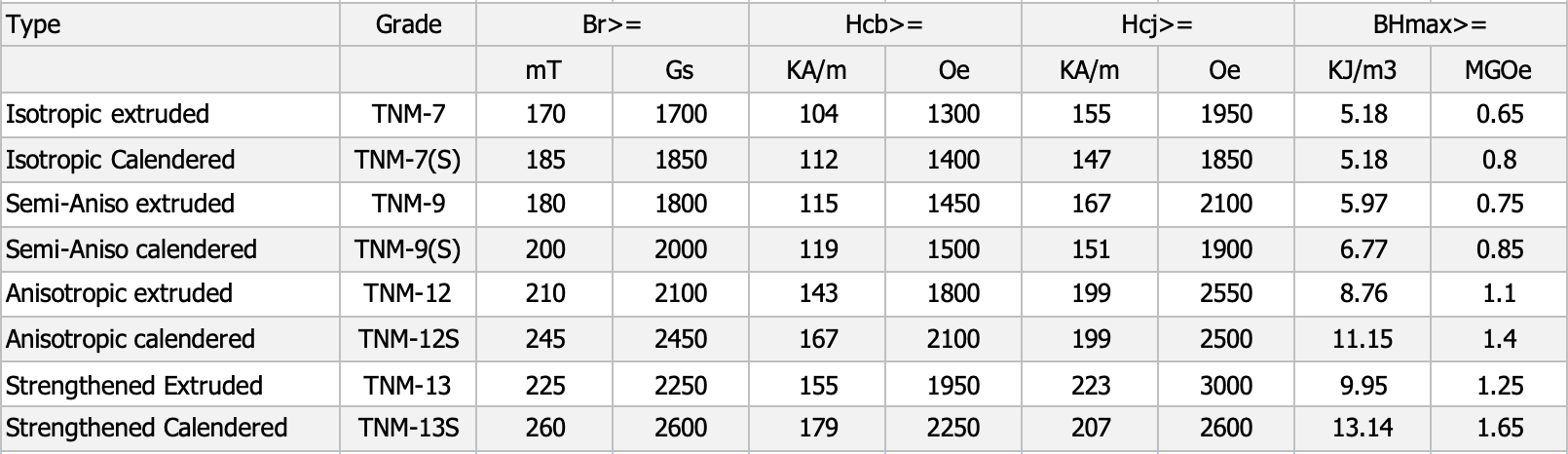

| Type | Grade | Br>= | Hcb>= | Hcj>= | BHmax>= | ||||
| mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | ||
| Isotropic extruded | TNM-7 | 170 | 1700 | 104 | 1300 | 155 | 1950 | 5.18 | 0.65 |
| Isotropic Calendered | TNM-7(S) | 185 | 1850 | 112 | 1400 | 147 | 1850 | 5.18 | 0.8 |
| Semi-Aniso extruded | TNM-9 | 180 | 1800 | 115 | 1450 | 167 | 2100 | 5.97 | 0.75 |
| Semi-Aniso calendered | TNM-9(S) | 200 | 2000 | 119 | 1500 | 151 | 1900 | 6.77 | 0.85 |
| Anisotropic extruded | TNM-12 | 210 | 2100 | 143 | 1800 | 199 | 2550 | 8.76 | 1.1 |
| Anisotropic calendered | TNM-12S | 245 | 2450 | 167 | 2100 | 199 | 2500 | 11.15 | 1.4 |
| Strengthened Extruded | TNM-13 | 225 | 2250 | 155 | 1950 | 223 | 3000 | 9.95 | 1.25 |
| Strengthened Calendered | TNM-13S | 260 | 2600 | 179 | 2250 | 207 | 2600 | 13.14 | 1.65 |
Search by type, size, or application, or submit your requirements. Our team will provide tailored solutions and fast support.
