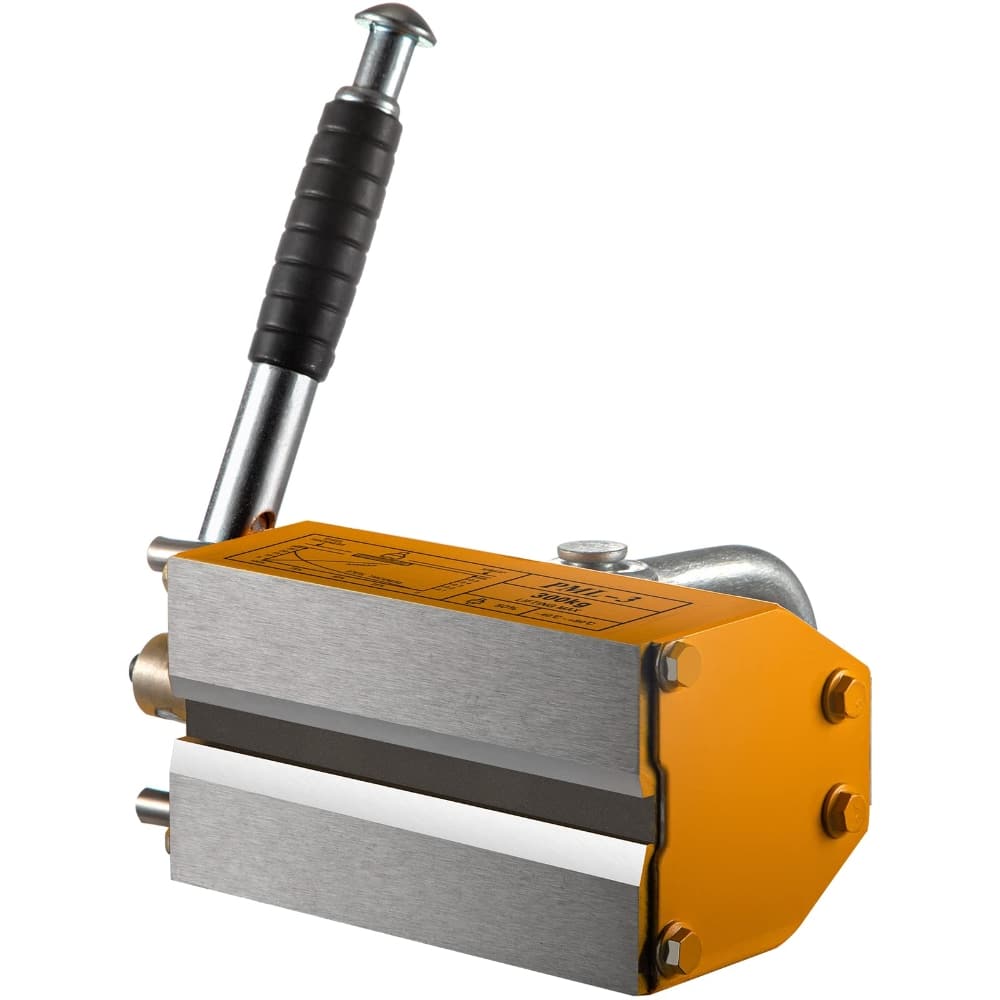

Permanent magnetic lifters are lifting devices that use strong NdFeB magnets to generate a magnetic circuit. The magnetic field can be controlled by rotating a handle to switch the magnet on or off. They require no electricity, are compact and lightweight, provide strong holding force, are easy and safe to operate, and maintain lasting magnetic strength. They are widely used in factories, docks, warehouses, and transportation for lifting and handling steel plates, ingots, and other ferromagnetic materials.
For a project-specific quotation, please share the load weight and dimensions, lifting orientation, base material and thickness, surface condition or air gap, operating temperature, and required quantity. Confirm the selected model’s applicable rated lifting conditions with the supplier before use.

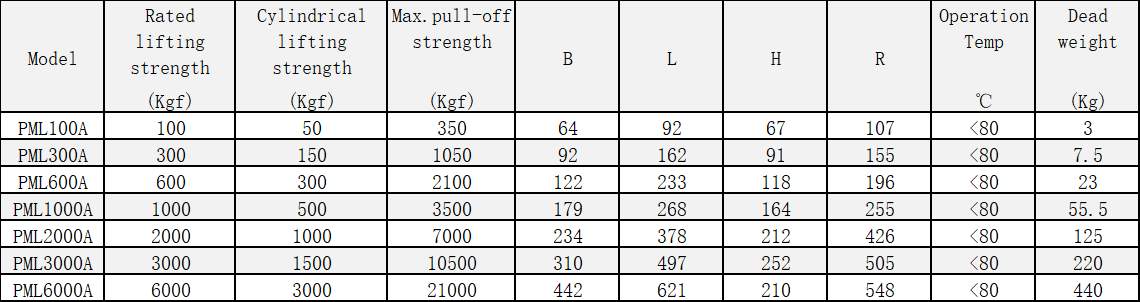

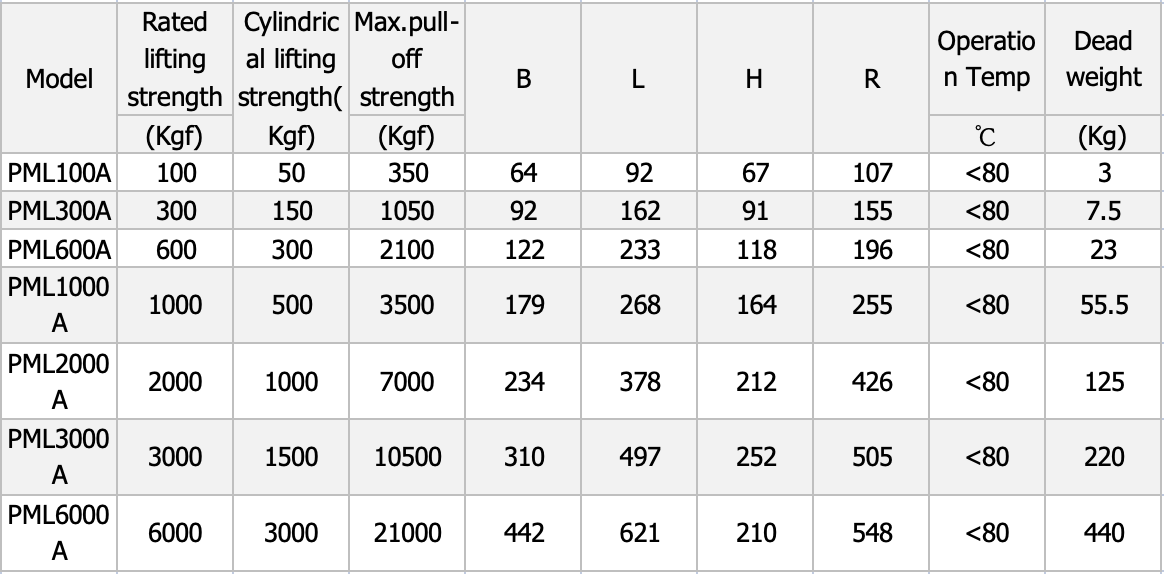

| Model | Rated lifting strength | Cylindrical lifting strength(Kgf) | Max.pull-off strength | B | L | H | R | Operation Temp | Dead weight |
| (Kgf) | (Kgf) | ℃ | (Kg) | ||||||

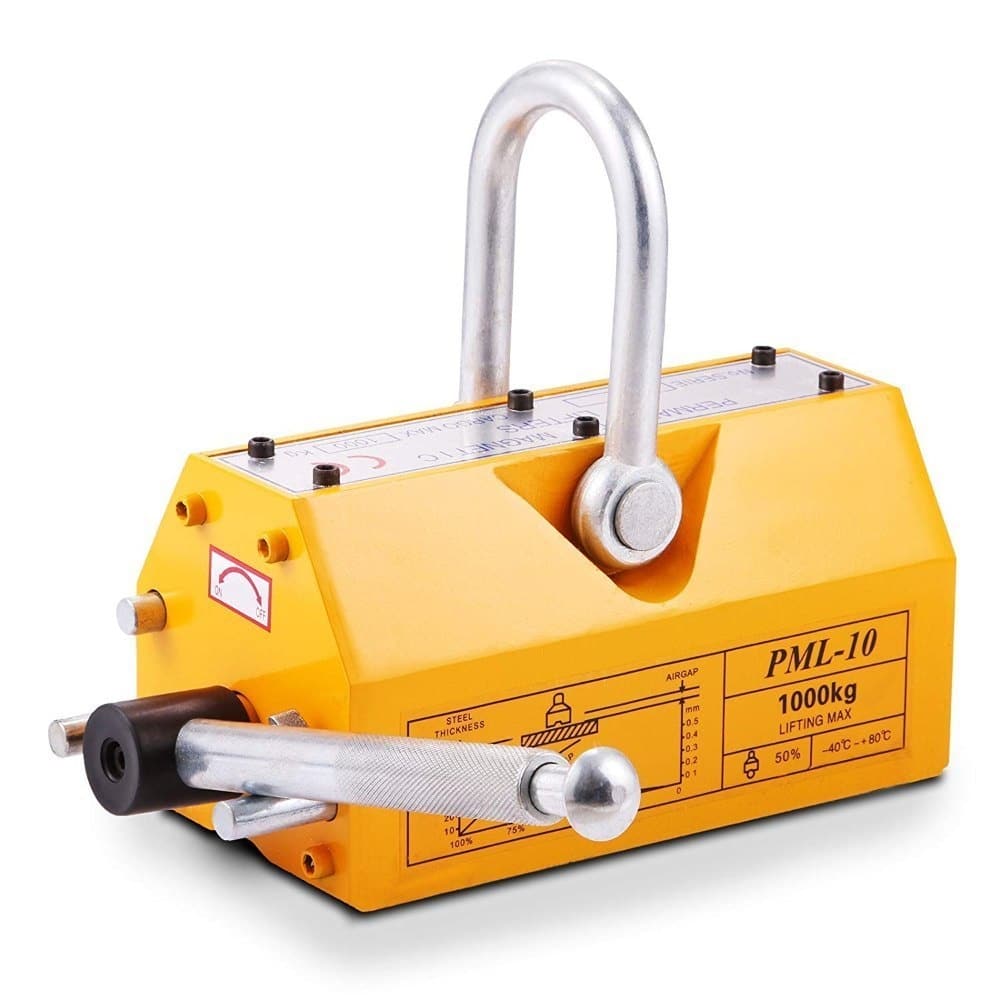

| PML100A | 100 | 50 | 350 | 64 | 92 | 67 | 107 | <80 | 3 |
| PML300A | 300 | 150 | 1050 | 92 | 162 | 91 | 155 | <80 | 7.5 |
| PML600A | 600 | 300 | 2100 | 122 | 233 | 118 | 196 | <80 | 23 |
| PML1000A | 1000 | 500 | 3500 | 179 | 268 | 164 | 255 | <80 | 55.5 |
| PML2000A | 2000 | 1000 | 7000 | 234 | 378 | 212 | 426 | <80 | 125 |
| PML3000A | 3000 | 1500 | 10500 | 310 | 497 | 252 | 505 | <80 | 220 |
| PML6000A | 6000 | 3000 | 21000 | 442 | 621 | 210 | 548 | <80 | 440 |

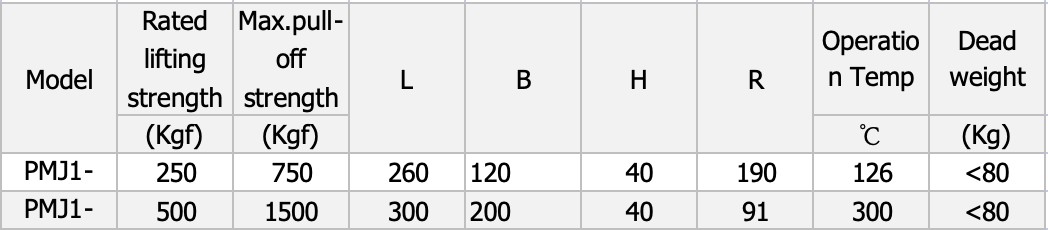

| Model | Rated lifting strength | Max.pull-off strength | L | B | H | R | Operation Temp | Dead weight |
| (Kgf) | (Kgf) | ℃ | (Kg) | |||||

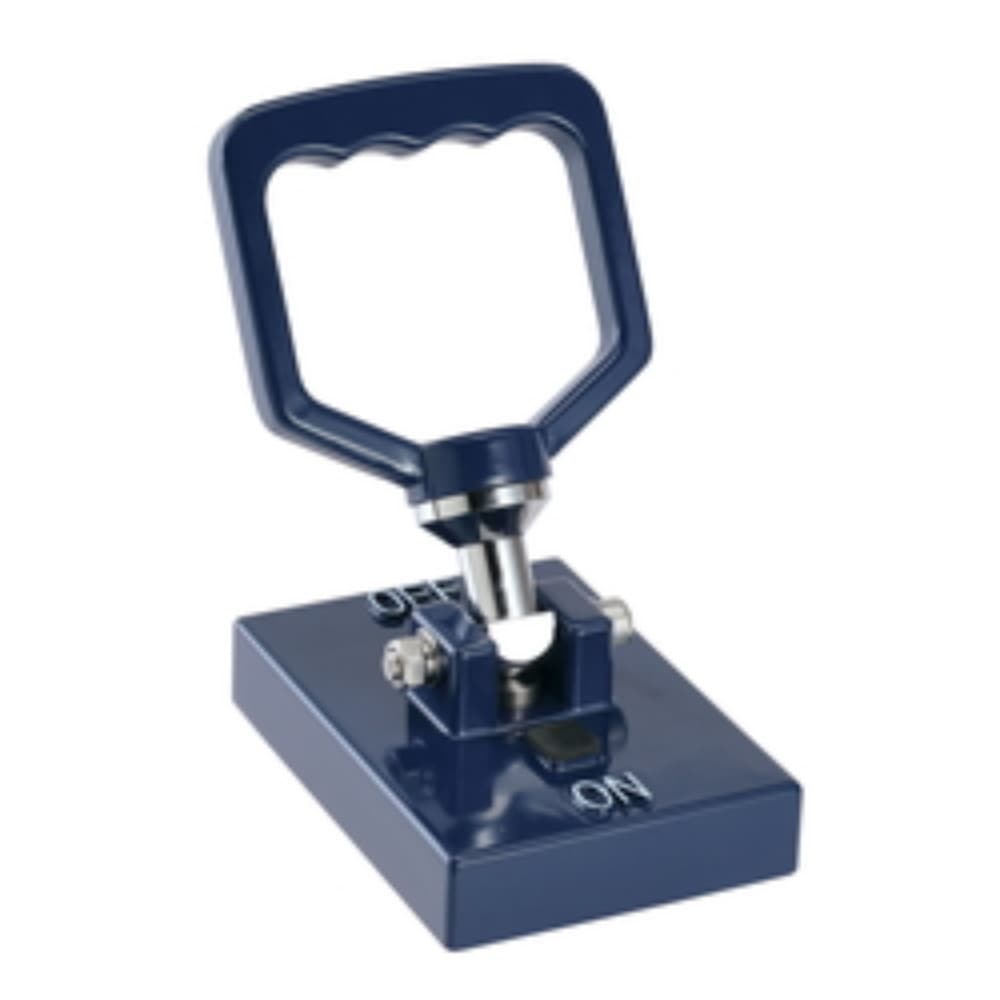

| PMJ1-250 | 250 | 750 | 260 | 120 | 40 | 190 | 126 | <80 |
| PMJ1-500 | 500 | 1500 | 300 | 200 | 40 | 91 | 300 | <80 |

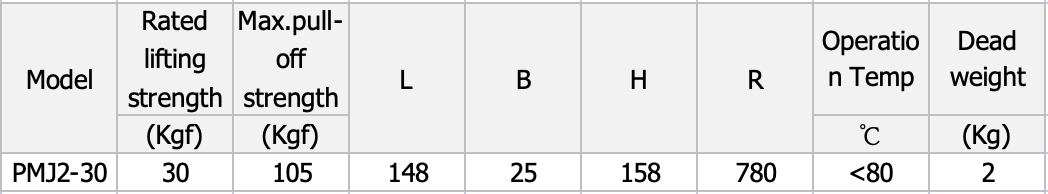

| Model | Rated lifting strength | Max.pull-off strength | L | B | H | R | Operation Temp | Dead weight |
| (Kgf) | (Kgf) | ℃ | (Kg) | |||||

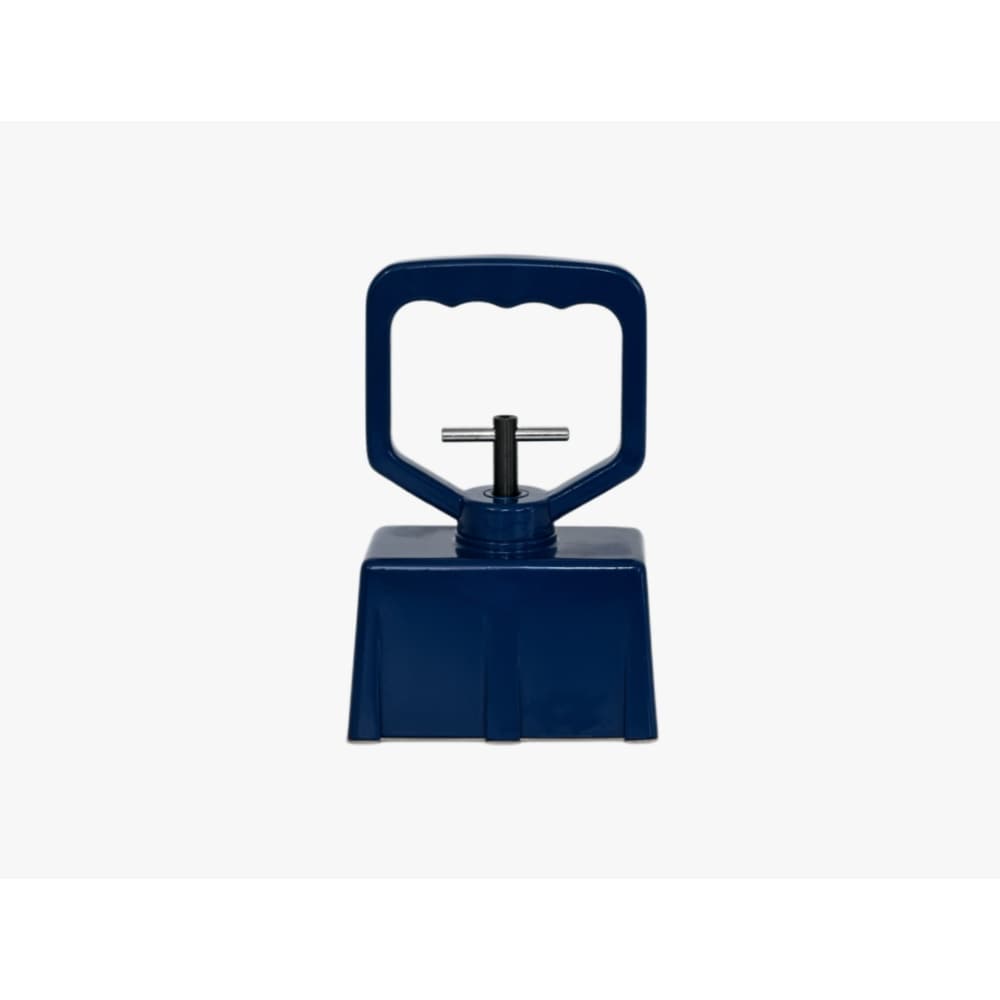

| PMJ2-30 | 30 | 105 | 148 | 25 | 158 | 780 | <80 | 2 |

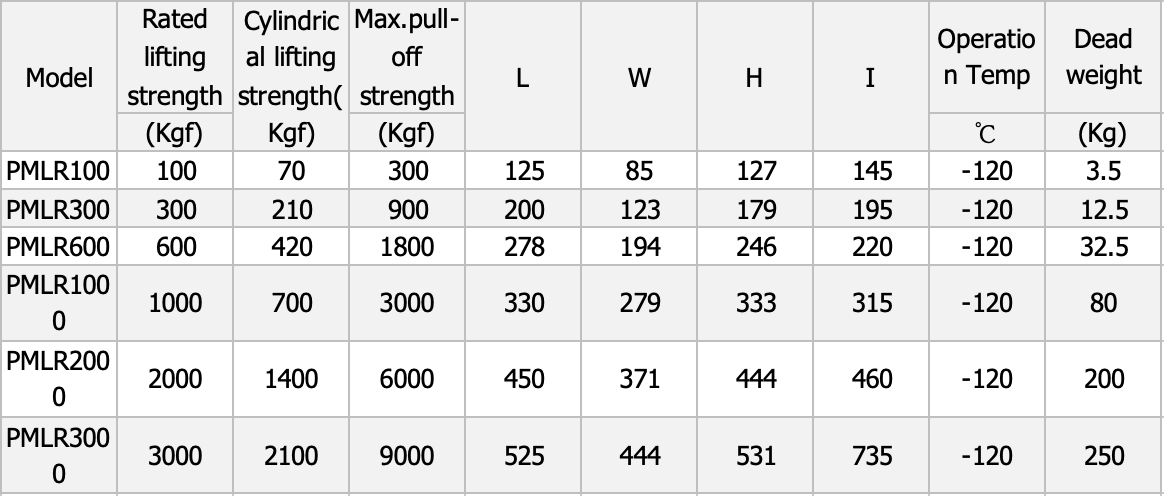

| Model | Rated lifting strength | Cylindrical lifting strength(Kgf) | Max.pull-off strength | L | W | H | I | Operation Temp | Dead weight |
| (Kgf) | (Kgf) | ℃ | (Kg) | ||||||
| PMLR100 | 100 | 70 | 300 | 125 | 85 | 127 | 145 | -120 | 3.5 |
| PMLR300 | 300 | 210 | 900 | 200 | 123 | 179 | 195 | -120 | 12.5 |
| PMLR600 | 600 | 420 | 1800 | 278 | 194 | 246 | 220 | -120 | 32.5 |
| PMLR1000 | 1000 | 700 | 3000 | 330 | 279 | 333 | 315 | -120 | 80 |
| PMLR2000 | 2000 | 1400 | 6000 | 450 | 371 | 444 | 460 | -120 | 200 |
| PMLR3000 | 3000 | 2100 | 9000 | 525 | 444 | 531 | 735 | -120 | 250 |
Magnetic lifters are used for lifting and handling steel plates, ingots, and other ferromagnetic materials in factories, docks, warehouses, and transportation.
