Introduction

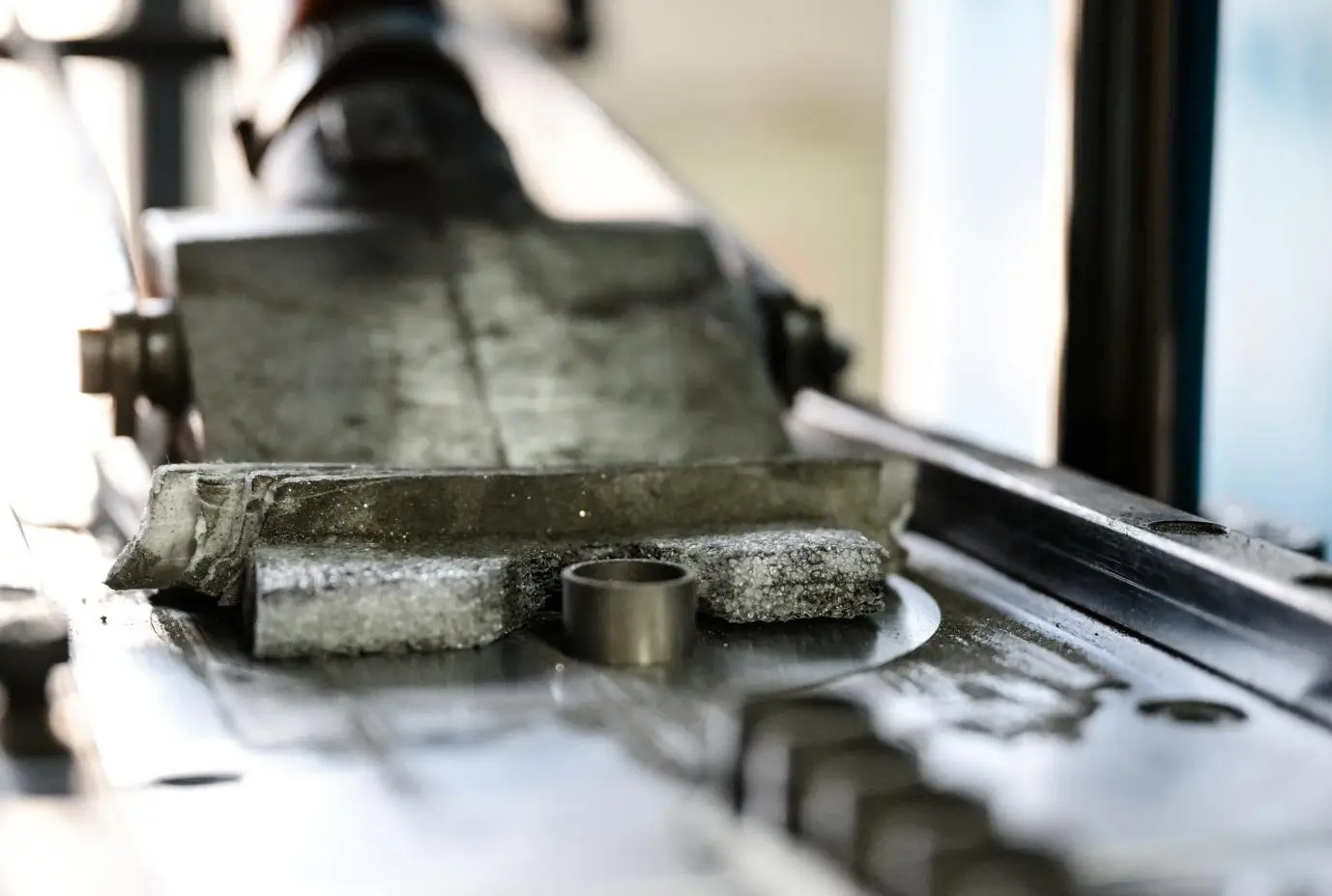

Engineers build strong electric motors. They often ask a very important question when they design these complex machines. Why can’t neodymium magnets be cast monolithically rather than made from sintered powder? Workers pour hot liquid steel into molds to make solid parts all the time. Why must the best magnets go through a long powder process?
This answer matters a lot. The magnet industry uses sintered neodymium magnets every single day for many products. The rules of science stop us from casting a solid NdFeB magnet. A cast magnet loses its magnetic power completely.
We will explain neodymium magnet manufacturing in this simple guide. We break down the hard science behind the peritectic reaction neodymium magnets experience during cooling. We also explain why the NdFeB sintering process gives the best magnetic strength.
Understanding Monolithic Casting vs. Powder Metallurgy
We must learn two different methods first. We need to know why neodymium magnets cannot be cast easily.
Monolithic Casting melts a metal mixture until it becomes a hot liquid. Workers pour this liquid into a mold to cool into one solid piece. Factories make standard steel parts and old Alnico magnets this way. The metal changes from liquid to solid without losing its basic chemical makeup.
Powder Metallurgy uses a completely different set of steps. Factories melt the metal and cool it very fast to stop bad changes. They crush the metal into a tiny powder. Machines line up the powder and press it into a tight block. The factory bakes the block at high heat. The tiny pieces stick together without melting into a liquid.
Casting works great for many common metals. However, monolithic casting neodymium magnets fails every time. However, monolithic casting neodymium magnets creates a useless rock. The atomic structure of the Nd-Fe-B mix causes this major problem. Makers must use powder metallurgy magnets to control the tiny crystals. This method creates the huge power that sintered neodymium magnets provide.
The Traditional Manufacturing Process of Neodymium Magnets
You should understand the normal steps first. We will look at the rare earth magnet casting limitations soon. Neodymium magnet manufacturing follows a very strict path.
1.Vacuum Melting:Workers melt neodymium, iron, and boron in a closed tank. The tank removes air to stop the metal from burning.
2.Strip Casting:The machine pours the hot liquid onto a cold wheel. The liquid cools very fast to make thin metal flakes.
3.Hydrogen Crushing:The factory puts the flakes into hydrogen gas. The gas breaks the metal into a rough powder.
4.Jet Milling: Fast air blows the rough powder around in a circle. The pieces hit each other and break into tiny dust. Each piece of dust is one single crystal.
5.Magnetic Pressing:A machine puts the dust into a mold. A strong magnet lines up all the tiny crystals in the same direction. The machine presses the dust into a solid block.
6.Sintering:The factory heats the block in a special oven. The heat makes the tiny pieces stick together tightly. The block shrinks and becomes very hard.
7.Cutting and Coating:The hard block breaks easily like glass. Workers cut it with diamond tools. They add a metal skin to stop rust.
Why Neodymium Magnets Cannot Be Cast Monolithically – The Fundamental Metallurgical Reasons
The big question still remains. Why neodymium magnets cannot be cast directly into a final shape? Four main science rules cause this problem.
Incongruent Melting and Peritectic Reaction in Nd-Fe-B System
The incongruent melting NdFeB process causes the biggest issue. Steel melts and freezes while keeping its exact same form. The Nd-Fe-B metal acts very differently.
The liquid metal cools down slowly. It does not turn into the exact solid magnet phase that we want. Instead, it goes through the peritectic reaction neodymium magnets are famous for. Pure iron forms first from the hot liquid. The remaining liquid tries to mix with this iron later.
This mixing action never finishes during a normal cooling process. The solid part forms a wall around the iron core. The liquid cannot reach the iron inside the wall. The final block contains a messy mix of different metals. It leaves large chunks of soft iron inside the block. This soft iron ruins the magnetic power completely.
Extreme Oxidation Sensitivity of Molten NdFeB
Rare earth metals burn very easily. Neodymium reacts with air and water almost instantly. Neodymium magnet manufacturing must fight this problem at every step. Casting a large solid piece makes this fight much harder. Factories cannot keep all the air out of a huge casting mold easily. Air touches the hot liquid and ruins the pure metal. The oxygen steals the neodymium away from the mix. The NdFeB sintering process solves this by doing the hot work inside a sealed vacuum tank.
Grain Structure and Magnetic Domain Issues
A strong magnet needs a very special inside structure. The jet milling step makes the dust exactly the right size. Each dust piece acts as one tiny independent magnet.
A slow cooling cast creates huge crystal chunks. The magnetic walls inside these huge chunks move around too easily. The magnet loses its power when another magnet comes close. Powder metallurgy magnets trap these walls inside the tiny dust pieces. This trapping action keeps the magnet strong forever.
Phase Diagram Limitations
Science charts show how metals freeze. The chart for Nd-Fe-B shows that pure iron always freezes first. The rare earth magnet casting limitations come straight from this basic rule. The liquid cannot turn into a pure magnet without leaving leftover iron. Factories must crush the metal to mix the iron back in. This crushing step brings us right back to the powder method.
Technical Challenges of Attempting to Cast NdFeB Magnets
Engineers try to cool the liquid very fast to skip the iron problem. This fast cooling creates a metal with mixed-up magnetic directions. The magnetic pull goes everywhere and cancels itself out.
A powerful magnet needs all its tiny crystals to point the same way. The hot liquid moves too much to keep the crystals lined up. The solid cast locks the crystals in random directions forever. You must break the metal into dust to line up the crystals. You use a big magnet to point the dust in one direction. You press the dust to lock the crystals in place. This physical rule explains why neodymium magnets cannot be cast.
The leftover soft iron also causes physical problems. The main magnet part is very hard and breaks easily. The soft iron bends easily. This mix creates stress inside the solid block. The block cracks and breaks when workers try to cut it.
Advantages of the Sintered Powder Route
The NdFeB sintering process fixes all the casting problems. It also gives makers many great benefits.
- Maximum Power:The powder method lines up the tiny crystals perfectly. Sintered neodymium magnets hold the most magnetic energy in the world.
- Inside Control:Powder metallurgy magnets let makers change the outside skin of the tiny crystals. They add special metals to make the magnet survive high heat.
- Mass Production: Factories bake large blocks of pressed powder easily. They cut these uniform blocks into thousands of perfect small shapes.
Comparison Table: Casting vs. Sintering for Neodymium Magnets
We can compare the two methods clearly. This table shows why factories choose the powder way.
Feature | Monolithic Casting Attempt | NdFeB Sintering Process |
Metal Purity | Bad (leaves soft iron) | Great (pure magnet phase) |
Crystal Size | Huge (loses power easily) | Tiny (holds power well) |
Magnetic Direction | Random (weak pull) | Lined Up (strong pull) |
Power Loss Resistance | Very Low | Very High |
Total Energy | Very Weak | Extremely Strong |
Factory Use | Fails completely | The global standard |
Alternative Manufacturing Methods
Factories cannot use monolithic casting neodymium magnets for strong motors. Neodymium magnet manufacturing does use a few other special ways.
Bonded Magnets
Workers mix the metal dust with plastic glue. They push this mix into complex molds. They do not bake the parts at high heat. The plastic makes the magnet much weaker than a baked magnet. These parts work well for small sensors. They bypass the rare earth magnet casting limitations by using glue instead of heat.
Hot-Deformed Magnets
Some factories press the metal dust while it is very hot. The hot pressing squishes the crystals flat to line them up. This method skips the normal baking step. Makers use this way to build thin magnet rings for car parts.
Additive Manufacturing (3D Printing)
New machines can print magnet parts using hot beams in a vacuum. The printed parts do not crack or break. However, the printed magnets have very weak magnetic power. The printing process cannot control the incongruent melting NdFeB reaction well enough yet. Sintered neodymium magnets still win for heavy power jobs.
Real-World Implications for Designers and Manufacturers
Designers must understand these science rules. The peritectic reaction neodymium magnets face changes how we build things.
Powder metallurgy magnets shrink when they bake in the oven. The shrinking happens unevenly. You cannot bake a magnet to a perfect exact size. Workers must grind all sintered neodymium magnets after they cool down.
Designers should not ask for sharp inside corners or very thin walls. A cast steel part can have these shapes easily. A baked magnet part will break if you try to cut these shapes. You must treat the magnet like a hard piece of glass. This mindset saves a lot of time and money in the factory.
Conclusion
The main question has a clear science answer. Why can’t neodymium magnets be cast monolithically rather than made from sintered powder? The metal freezing rules stop us from doing it. The incongruent melting NdFeB chart proves this fact. The peritectic reaction neodymium magnets go through ruins the cast metal. We must line up the tiny crystals to get strong power.
The NdFeB sintering process beats all these hard science rules. It safely avoids the rare earth magnet casting limitations completely. It creates the super strong sintered neodymium magnets that run our modern world. Good designers use this knowledge to build better and cheaper machines.
